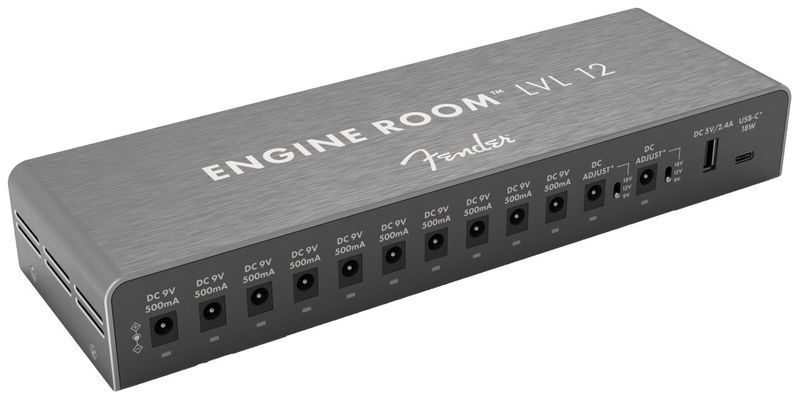

Fender Engine Room LVL12 Power Supply

Multi-Power Supply for Effects Pedals

Designed for use with pedalboards
10 Outputs: 9 V DC 500 mA DC
2 Outputs: 9V (500 mA) / 12 V (375 mA) / 18 V (250 mA) DC
5V USB-A and USB-C outputs for charging smart devices
Slim and flat design
Roadworthy for live or studio use
Housing made of light, anodised aluminium
Dimensions (W x D x H): 282 x 90 x 42 mm
Weight: 835 g

Included Cables:

6x 2.1 mm Coaxial plug (60 cm)
4x 2.1 mm Coaxial plug (45 cm)
2x 2.1 mm Coaxial plug (30 cm)
1x 2.5 mm - 2.1 mm Coaxial plug (45 cm)
1x 2.5 mm - 2.1 mm Coaxial plug with reversed polarity (45 cm)
1x 3.5 mm - 2.1 mm (45 cm)
1x 9 V Battery Clip - 2.1 mm coaxial plug (45 cm)
1x Daisy-chain cable (male - female)

30-Day Money-Back Guarantee

3-Year Thomann Warranty

Available since July 2024

Item number 512243

Sales Unit 1 piece(s)

DC/AC current DC

9 V Yes

12 V Yes

18 V Yes

Secondary voltage No

Multi-output power supply Yes

B-Stock from $186 available

$199

The shipping costs are calculated on the checkout page.

Sales Rank

in Guitar Effect Power Supplies

Bundles & offers

Fender Engine Room LVL12 Powe B-Stock
May have slight traces of use

$186

This is what customers who viewed this product bought

Thomann NT 0910 AC/PSA

$8.60

bought

Harley Benton PowerPlant ISO12AC Pro Modular

$111

bought

Harley Benton PowerPlant ISO-10AC Pro

$95

7 Customer ratings

5 6 Customers 4 1 Customer 3 0 Customers 2 0 Customers 1 0 Customers

4.9 / 5

quality

Review guidelines

5 Reviews

very nice new high-current power supplies

marlasky 30.05.2021

I tested this first by powering a bunch of Moogerfooger pedals, and it had no problem at all powering them. Next it will be on my guitar pedalboard. So far I have mostly used voodoo lab power supplies, but while great quality, the newer higher current ones tend to be either much more expensive, or simply unavailable.
This new range of fender power supplies promises isolated power at a more 'affordable' price point. They are still not cheap, but well worth it.

Report

Do you believe this rating to be inaccurate or unacceptable for some reason? Please give us the reason for your assessment in the following text box and – if possible – your e-mail address for further questions.

Probably the best pedal bored power supply out there

L-BOB 03.06.2022

Ease installment, delivering clear high power for every output.
Single power cord connector to outlet.
Strong robust material.

Report

Show translation

Show original

Unfortunately there was an error. Please try again later.

Leistung satt !

Knopfverdreher 20.11.2021

Bisher das beste Powersupply, das ich benutze. 500 mA Leistung auf jedem Output,
d.h. nie wieder unterversorgte Einzeleffekte. Auch die Gesamtleistung ist satt, ausreichend für alle Outputs. Ich hab‘s ausgerechnet. Mein altes Palmer
Powersupply hat nur 2000mA, d.h. bei 3x 500 und 2x 300 mA ist schon Schluß.
Da braucht man sich beim Fender Engine Room keine Gedanken zu machen.
Kleiner Hinweis : Den zusätzlichen IEC Power Output eher nicht zum Weiter-
verbinden mit einem zweiten Power Supply benutzen, weil der nur 500 Watt
zuläßt.
Fazit : Tolles Gerät !
Man merkt , daß Profimusiker bei der Entwicklung mitgearbeitet haben.

Report

Show translation

Show original

Unfortunately there was an error. Please try again later.

excellente alimentation

Joe Bill 28.10.2022

j'ai un gros pedal board à domicile et utilise deux alimentations fender engine room lvl 12 identiques donc pour 24 pédales au total dont accordeur et buffer alimenté.
Dessus sont branchés entre autres un looper boss rc 500 et trois grosses pedales strymon.
Je n'ai jamais rencontré de problèmes contrairement aux matériels bon marché ou j avais des coupures de courant pénibles.
Je suis donc très satisfait de ce matériel et comme mon pédal board est évolutif, une troisième voire une quatrième alimentation identique rejoindront le système. Ce n'est pas raisonnable mais c'est ainsi. Fender reste une marque d'excellence ! Et moi je m'amuse comme un fou !

Report
