the t.bone Speech 100 D

7

Delegate Microphone Unit for Digital Conference Systems

  • Condenser microphone
  • LCD display
  • Buttons: Agree, Drop, Disagree, +/-
  • Built-in loudspeaker with volume control
  • Headphone jack
  • 2x LAN (In/Link)
  • Microphone gooseneck length: Approx. 40 cm
  • Dimensions (W x H x D): 169 x 46 x 175 mm
  • Weight: 0.7 kg
  • Includes a 2 m network cable
Available since October 2018
Item number 438820
Sales Unit 1 piece(s)
B-Stock from $145 available
$175
The shipping costs are calculated on the checkout page.
In stock within 3-4 weeks
In stock within 3-4 weeks

This product is expected back in stock soon and can then be shipped immediately.

Standard Delivery Times
1

Complete conference system from the t.bone

The Speech 100 D delegate station is part of the Speech 100 conference system, which was developed by Thomann's in-house brand the t.bone and can accommodate up to 72 delegates with tabletop microphones that are interconnected by LAN cables to a central controller (t.bone Speech 100 M). Each delegate station is equipped with an integrated speaker, and the central controller can be configured from a laptop using the free dedicated software. Other noteworthy features include a voting function and a selection of discussion modes, which differ in terms of how many delgates are allowed to speak at once. The Speech 100 range additionally includes the 100 C presidential station, which is designed for the meeting chairperson and also features a priority control in addition to the range of functions offered by the 100 D.

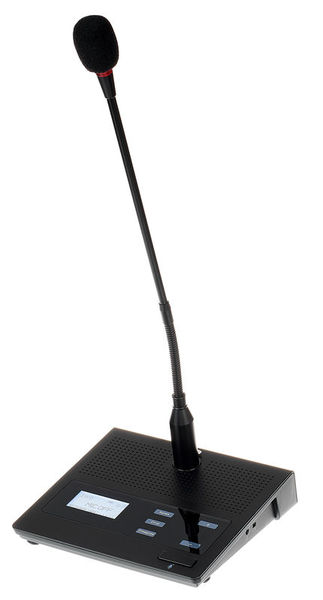

Closeup of the t.bone Speech 100 D Delegate Microphone Unit for Digital Conference Systems

Cast your votes, please...

The Speech 100 D delegate station comes complete with a condenser microphone in the scope of delivery, which has a frequency response of 200Hz to 6kHz and is connected to the output on the upper side of the base. The mic features a 40mm gooseneck to allow it to be positioned as needed by the speaker, and a red LED ring located below the microphone capsule illuminates when the mic is active. A 3.5mm headphone output is also provided on the right side of the base, and the headphone volume can be adjusted using the + and - buttons on the top panel. When the time comes to take a vote, the user simply has to press one of the three main buttons ("Agree", "Disagree", or "Drop") and as soon as the voting process is concluded, the result is displayed for 20 seconds on the adjacent LC display.

Closeup of the t.bone Speech 100 D Delegate Microphone Unit for Digital Conference Systems

Open to interpretation

The Speech 100 D delegate station from the t.bone is designed for small to medium-sized conferences. When hosting international delegates, organisers can also integrate an interpreter via the central control unit, and each delegate can listen to them by setting the switch next to the headphone output to the relevant position. Discussion modes with three, six, or nine mics enabled are also available in order to keep things as structured as possible. When the maximum number of speakers has been reached, those who also wish to speak can join the queue by pressing their mic button and will be informed when a slot becomes free. Hire companies will certainly appreciate the simplicity with which the system can be set up, and it can of course also be permanently installed in dedicated conference centers. As an added bonus, the LAN cables it employs will be pleasantly unobtrusive if the conference is to be filmed.

Capsule on the t.bone Speech 100 D Delegate Microphone Unit for Digital Conference Systems

About the t.bone

Since 1994, the t.bone has been one of Thomann’s in-house brands, and its name can be found on devices such as headphones, wireless systems, in-ear equipment, and various microphones and matching accessories. “the t.bone” products are made exclusively by renowned companies who also manufacture products for other well-known brands. This provides a clear advantage: Brand-quality products at very reasonable prices. And word gets around: One in seven Thomann customers has already bought at least one product from the t.bone.

Cabling made easy

The Speech 100 system is set up by first connecting the Speech 100 M unit to the power supply. The input of the first Speech 100 D unit is then connected to one of the mic inputs using the included 2m LAN cable, and the input of the next delegate station is subsequently connected to the first station's Link output. In this way, two chains comprising up to 16 delegate stations each can be set up. If more than 32 delegates are expected, the t.bone also offers a booster unit, the Speech 100 B. Adding two of these units to the setup allows the number of participants to be expanded to a maximum of 72.

7 Customer ratings

4.7 / 5

You have to be logged in to rate products.

Note: To prevent ratings from being based on hearsay, smattering or surreptitious advertising we only allow ratings from real users on our website, who have bought the equipment from us.

After logging in you will also find all items you can rate under rate products in the customer centre.

features

sound

quality

4 Reviews

U
Uzunov 27.02.2023
The quality of the mic is very good and the software is wery good
features
sound
quality
0
0
Report

Report

google translate de
Unfortunately there was an error. Please try again later.
BA
Achtung Kabellänge
Benjamin A. 29.06.2020
Wir haben eine größere Stückzahl dieser Sprechstellen mit der Masterunit im Einsatz. Was Thomann verschweigt, ist die Tatsache, dass man die Sprechstellen nur mit den mitgelieferten 2m Kabeln, oder mit speziellen AWG23 Kabeln im Bereich 5-7m verwenden kann. Ein Anruf bei Thomann-Professional ergab sofort die Auskunft: Ahja, bekanntes Problem. Geht halt nedd. Wäre doch schön wenn diese Info es in die Beschreibung schaffen würde. Wir hatten in einem 1000m² Raum 20 Sprechstellen zu verbinden und bereits die 2te Sprechstelle nach 20m herkömmlichem CAT5e Kabel hatte schon nicht mehr genug Leistung um das Mikrofon zu aktivieren. Die Sprechstellen können leider auch nicht extern mit Spannung versorgt werden ( zB Netzteilanschluss) und es gibt auch keinen Booster zu kaufen. Die Stecker sind proprietär belegt, man kann also auch nicht PoE-Injektoren verwenden um nochmal Saft ins System zu bringen. Kurzum, man kann das System nur verwenden wenn die Masterunit und die Tischsprechstellen eng bei einander stehen. Abgesetzt ist nicht. Weitere Mankos: Die Mikrofone zerren bei Nahbesprechnung, vermutlich der Preamp in den Sprechstellen. Und es gibt keine Möglichkeit einer Redeliste nach Reihenfolge der Sprechabsicht. Bedeutet, wenn der aktuelle Redner spricht, bekommt man lediglich die Info "Busy" und es wird nicht nach Freigabe durch den aktuellen Redner die Liste der Redeabsichten abgearbeitet. Das ließe sich evtl bei einem Update aber noch hinzufügen.
features
sound
quality
11
0
Report

Report

google translate de
Unfortunately there was an error. Please try again later.
C
Chauvi 30.11.2020
Ich kann mich meinem Vorredner überhaupt nicht anschließen. Die Konferenzanlage hält absolut was sie verspricht. Wegen der PoE Speisung sollte man sich an die vorgegebenen Gesamtlängen halten und die Gesamtzahl der Sprechstellen auf möglichst beide Stränge aufteilen. Mit hochwertigen Catkabeln sind auch größere Abstände machbar, und es gibt auch ein optionales PoE Netzteil. Alles in allem eine rundum sehr gute Lösung und für den Preis einfach top. PS: Die eingebauten Lautsprecher genügen sicher dem Anspruch eines kleineren Konferenzraums. Für größere Räumlichkeiten einfach mit dem Pre Out der Zentrale in die Aktivbox(en) oder auf eine bestehende ELA Anlage.
features
sound
quality
4
0
Report

Report

google translate de
Unfortunately there was an error. Please try again later.
W
Begeistert
WindLuke 10.11.2022
Wir sind von dieser Delegierten-Sprechstelle sehr begeistert. Die Qualität ist großartig für den Preis. Wir nützen das Konferenzsystem für hybride Veranstaltungen.
