Neural DSP Nano Cortex

41

Multi Effect Pedal for Electric Guitar

  • Digitally replicates the sound of amplifiers, speaker cabs, and pedals in the same quality and resolution as the "bigger" Quad Cortex
  • Up to 64 presets and 256 Neural Captures
  • 10 High-quality IRs pre-installed, each providing 5 different microphone options and 6 microphone positions
  • Loads up to 256 custom IRs
  • 7 Device blocks, including 2 Pre-FX (Adaptive Gate and Transpose), 3 Post-FX (Chorus, Analogue Delay, Mind Hall Reverb), 1 Neural Capture block and 1 extended IR loader
  • Each block can be bypassed depending on the setup
  • Free access to thousands of Neural Captures from the Cortex Cloud
  • Further processing possible via the Cortex Cloud App
  • Controls: Gain, Bass, Mid, Treble, Amount, Level, Headphone Vol
  • Push buttons: Exit, Capture, Save, Bank, FX, Ground/Lift, Boost
  • Footswitches: I and II
  • True bypass
  • Power supply via USB-C or 9-12 V DC mains adapter (not included)
  • Power consumption: 600 mA
  • Dimensions (W x D x H): 144 x 103 x 62 mm
  • Weight: 620 g

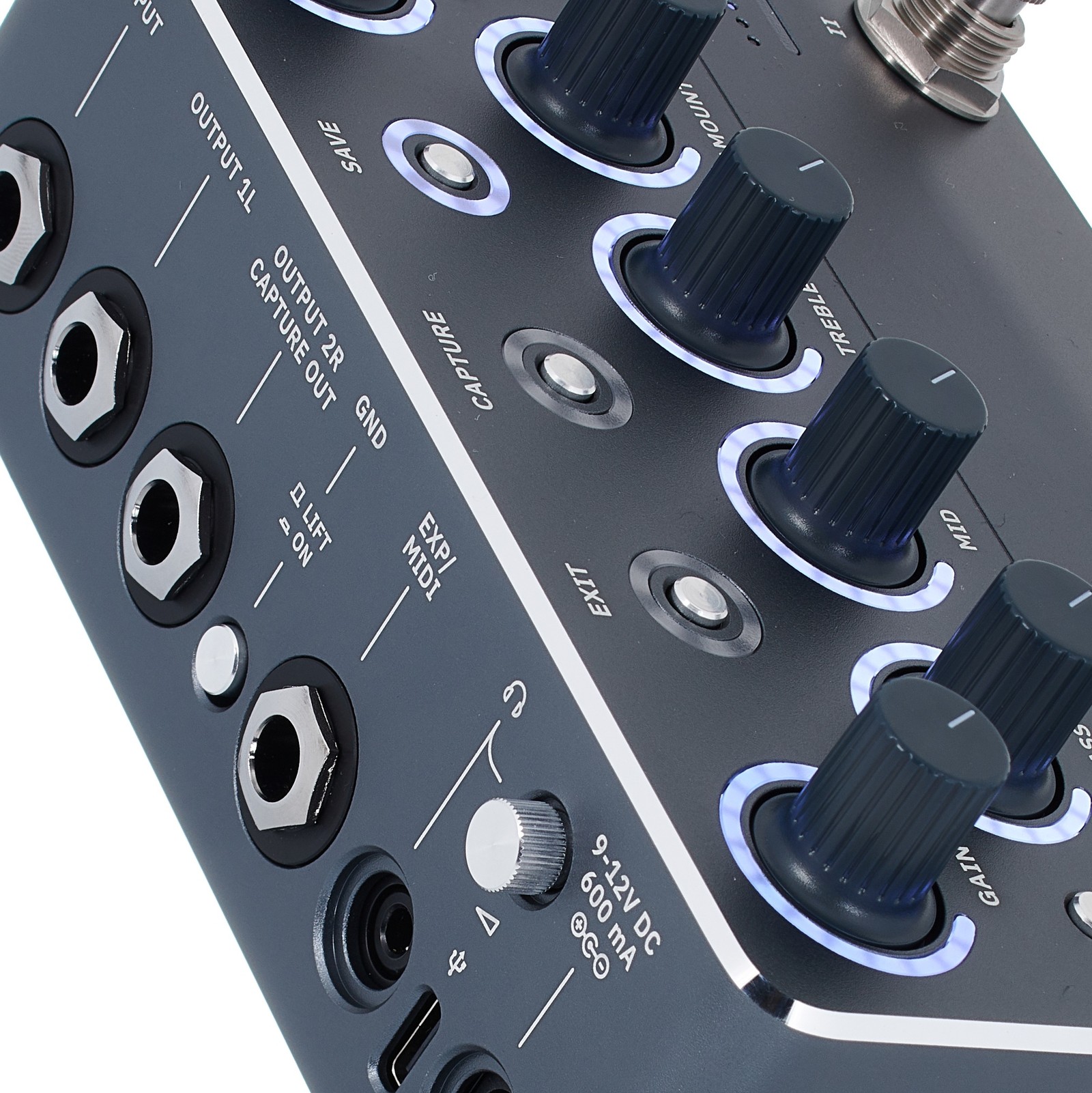

Connections:

  • Input: 6.3 mm Jack
  • Output 1L: 6.3 mm stereo jack
  • Output 2R/Capture output: 6.3 mm stereo jack
  • Headphone output: 3.5 mm stereo jack
  • Expression/MIDI: 6.3 mm stereo jack

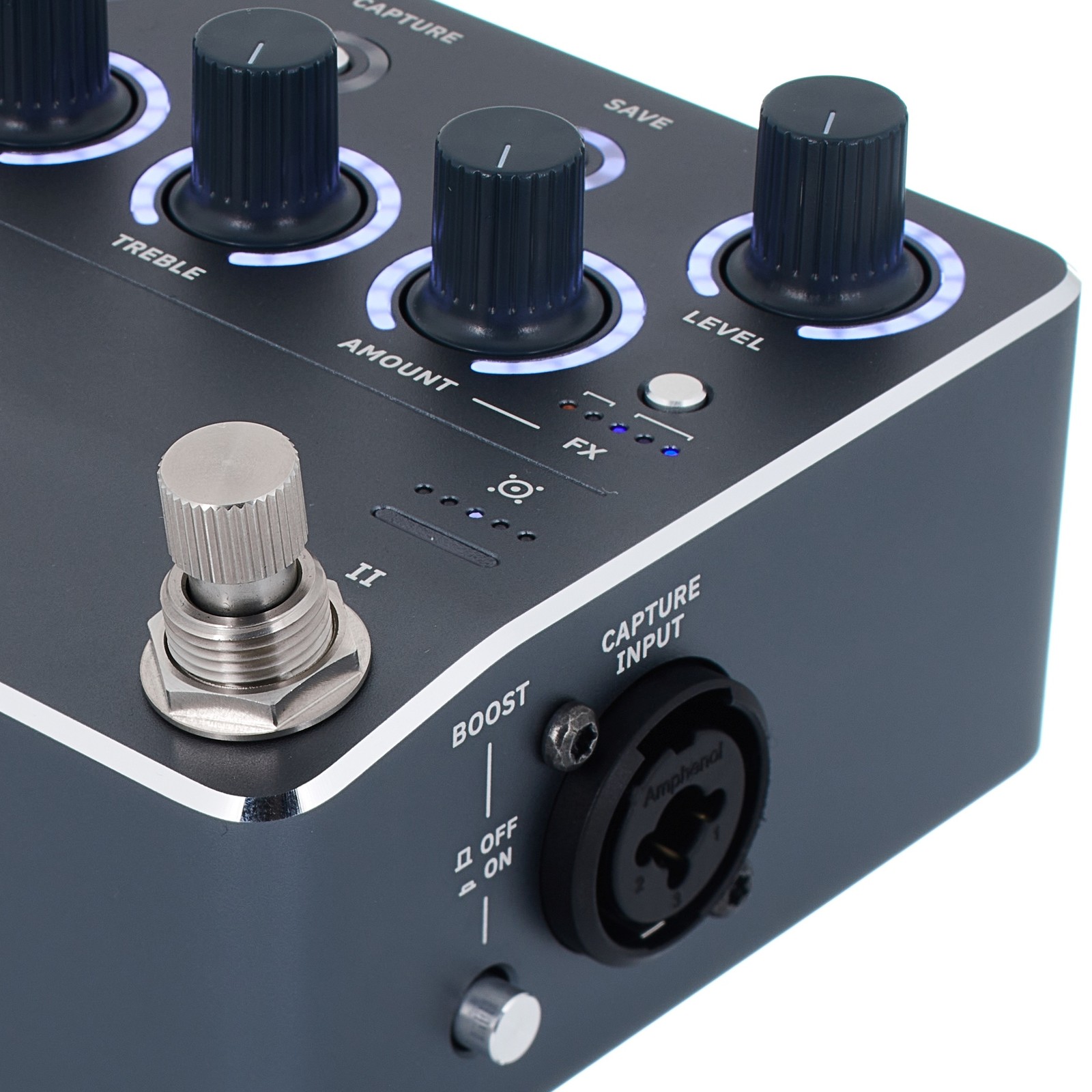

  • Capture input: XLR/6.3 mm jack combo
  • USB-C port for power supply
  • Power supply connection: Barrel connector 5.5 x 2.1 mm, centre negative

Note: Battery operation is not possible

Available since September 2024
Item number 585378
Sales Unit 1 piece(s)
Design Floorboard
Tube(s) No
Amp Modeling Yes
Effects Yes
Headphone Output Yes
Direct Out Yes
MIDI Interface Yes
Integrated Expression Pedal No
Connections for Pedals or Switches Yes
Aux-Input Yes
Integrated Tuner Yes
USB-Port Yes
Drum-Computer No
Integrated Effects 1
Incl. Tuner 1
MIDI Connector(s) 1
Line Out 1
PSU included 1
Aux Input 1
USB Connection 1
Show more
B-Stock from $435 available
$499
The shipping costs are calculated on the checkout page.
In stock within about one week
In stock within about one week

This product is expected back in stock soon and can then be shipped immediately.

Standard Delivery Times
1
112
Visitors
are looking at this product
2
Sales Rank
in Electric Guitar Preamps

41 Customer ratings

3.9 / 5

You have to be logged in to rate products.

Note: To prevent ratings from being based on hearsay, smattering or surreptitious advertising we only allow ratings from real users on our website, who have bought the equipment from us.

After logging in you will also find all items you can rate under rate products in the customer centre.

handling

features

sound

quality

32 Reviews

A
Stellar amp sounds, very limited features
Alfi27 30.09.2024
To start with the positives, I tried capturing two of my amps yesterday and the results were genuinly incredible... I've never heard any other digital unit, whether its technology was based on modelling, profiling/capturing or whatever, reproducing the detail and clarity of a real mic'd up amp as accurately as the Nano Cortex. I haven't tried the ToneX, but I don't really see the need to - it physically can't get a hell of a lot better than this. The NDSP capture process is relatively fast and painless as well, more so than the ToneX process from my understanding. A couple minutes of ghastly noises that would make any priest worth his salt immediately go fetch his bottle of holy water, followed by a couple minutes of number crunching in silence, and you're left with an impressively accurate capture.

On the negative side, it's very unfortunate that Neural DSP decided to dumb this unit down as much as they did. It's simply not going to be a comprehensive rig for the vast majority of players. Myself included, who admittedly don't have the biggest demands or need the most complex rig, but having a little bit of "headroom" feature wise in a unit like this is never a bad thing. The fact that they did include some effects makes it a somewhat "neither fish nor fowl" kind of product, and thus a bit unclear what exact purpose it's intended to serve. The way I see it, it's pretty expensive for a pure capturing device, and they probably realised that and decided to add a couple of extremely limited, half baked effects to make it seem like a decent deal compared to something like the Kemper Player.

I've dreamt of something like this for a long time, a tiny unit that fits in a gig bag pocket and sounds killer. And while it certainly does fit that description, it still leaves a lot to be desired. I'll have to either expand it with something like a Line 6 HX Stomp, or simply swap it for a Quad Cortex to make it cover everything I need. Which, again, isn't all that much.
handling
features
sound
quality
11
4
Report

Report

S
Great stuff!
Sc4v3 29.09.2024
Top quality on about every aspect I expected to use it, only draw back (which I hope is going to be changed via software) is the ability to use either Midi or EXP signals and not both at same time....I'm currently using an FCB1010 with it and would be kinda cool to be able to use both midi PC as well as Volume and EXP midi signals to the nano to control output level and effects expression amounts for example
handling
features
sound
quality
6
2
Report

Report

B
Absolutely perfect for my usage!
BedroomWarrior 24.09.2024
This is definitely the best guitar gear I've ever had. The included captures are amazing and the effects, even though there are only a few, sound really great. The app's user interface is very friendly and easy to use. You can also do everything without the app, which is great! The capturing process is really easy to do. Well done, Neural DSP! What an incredible time to be alive and playing guitar!
handling
features
sound
quality
13
13
Report

Report

TO
Better than I thought
Thomas O. 713 20.10.2024
Excellent and easy to use device, pairs quickly with phone , no drop outs so far , the cloud is easy to use .The sound is really really good , works well with gtr volume knob , same as a amp. delay, modulation, reverb are all excellent.if you need more effects just add some, they work very well with this pedal. I have a Timmy type overdrive and it sounds amazing with this.
559 for all these amp sounds + reverb + mod+ delay, ir's etc, is a good bang for the buck. the lack of a screen makes it easier to use and less prone to option nuttiness which is a good thing , you play it more often. I 've had the boss gt1000 core , Headrush MX5 and these needed a lot of work to get a good sound ,this is just so good sounding out of the box its unreal and then you so many sounds on the cloud as well as the neural capture thing , whats not to like. Some people seem to think the fixed line of effects is limiting , but you can add delay, reverbs etc at the end and the mods ,distortion ,wah etc at the start just like an amp. So whats not to like , yeh the price isn't fun but you get a lot for it and is easy to use, as say an ordinary distortion pedal .
Avery good exercise in ergonomics.
