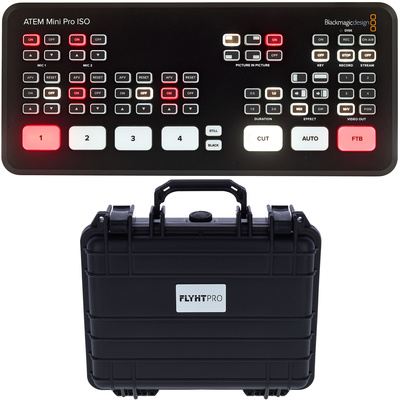

Blackmagic Design ATEM Mini Pro ISO Bundle

Bundle offer comprising

Blackmagic Design ATEM Mini Pro ISO

Live Mixer with Four Scalable HDMI Inputs

With USB webcam output, audio mixer with EQ and dynamics, 2D DVE, transitions, green screen chromakeyer, capacity for 20 stills for titles and much more
In addition to the basic functionality, allows recordings on USB drives in H.264 format
Integrated hardware streaming engine for YouTube Live, Facebook, Twitch and others
Multiviewer for viewing all cameras on one monitor
Can also record five streams including all signal inputs as clean feeds for editing
Generates a DaVinci project file for fast cutting and creates a new link to the Blackmagic RAW file for Ultra HD finishing
Video inputs: 4x HDMI type A 10-bit HD (switchable, 2 embedded audio channels)
Video outputs: 2
AUX outputs: 1
Audio inputs: 2x 3.5 mm stereo mini jacks
No audio outputs, only embedded audio
Resync on all four HDMI inputs
Frame rate and format converter on all 4 HDMI inputs
HDMI program outputs: 1
Ethernet: Supports 10/100/1000 BaseT for live streaming, software control, software updates and connecting a control panel to the mixer directly or via network
Computer interface: 1x USB port type C 3.1 1st generation for recording on external hard drives as well as for webcam output, software control, software updates and for connecting a control panel
HD video input standards: 720p/50; 720p/59,94; 720p/60; 1080p/23,98; 1080p/24; 1080p/25; 1080p/29,97; 1080p/30; 1080p/50; 1080p/59,94; 1080p/60;1080i/50; 1080i/59,94; 1080i/60
HD video output standards: 1080p/23,98; 1080p/24; 1080p/25; 1080p/29,97; 1080p/30; 1080p/50; 1080p/59,94; 1080p/60
Video standards for streaming: 1080p/23,98; 1080p/24; 1080p/25; 1080p/29,97; 1080p/30; 1080p/50; 1080p/59,94; 1080p/60
Video sampling rate: 4:2:2 YUV
Colour accuracy: 10-bit
Colour spaces: Rec 709
HDMI input resolution from computers: 1280 x 720p 50 Hz, 59.94 Hz and 60 Hz; 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 Hz; 1920 x 1080i 50, 59.94 and 60 Hz
Colour space conversion: Hardware-based in real time
Upstream keyers: 1
Downstream keyers: 1
Advanced Chroma keyers: 1
Linear / Luma keyers: 2
Transition keyer: DVE only
Total number of levels: 5
Pattern Generators: 1
Colour Generators: 2
DVE with borders and shadows: 1
Audio mixer: 6 Inputs with 2 channel mixers each
Channel-by-channel preset for switching audio-follows-video on or off, as well as separate gain control for each channel
Level and peak level measurement
Fairlight audio features: Compressor, gate, limiter, parametric 6-band EQ, main gain control
Analogue input: Unbalanced stereo
Analogue input delay: Up to 8 frames
Input impedance: 1.8 k
Maximum input level: +6 dBV
Direct streaming: Supports direct live streaming via Ethernet using Real Time Messaging Protocol (RTMP)
Includes ATEM software control panel for Mac Mojave 10.14, Mac Catalina 10.15 or higher and for Windows 10 only in 64 bit
Power consumption: 36 W
Dimensions: 238 x 104 x 35 mm
Weight: 550 g
Includes external 12V DC power adapter with plug adapters for all countries
Matching case: Art.492751 (not included in delivery)
Matching inlay: Art.515202 (not included in delivery)

Flyht Pro WP Safe Box 3 IP65

Transport Case

Waterproof, dustproof and airtight transport case with sturdy handle
Impact-resistant hard plastic housing
Material: Polypropylene (PP)
Rubber seal
Front valve for pressure equalisation
Fixed locking latch
Convoluted foam and die-cut foam cubes on the bottom
Can be used at temperatures from -25°C to +75°C
Protection class: IP-65
External dimensions (L x W x H): 330 x 280 x 120 mm
Internal dimensions (L x W x H): 298 x 218 x 95 mm
Weight: 1.7 kg
Suitable variable inlay: Article no. 480977 (not included)

30-Day Money-Back Guarantee

3-Year Thomann Warranty

Available since September 2020

Item number 502711

Sales Unit 1 piece(s)

Streaming via USB Yes

Type Video Mixer

Show variations of this product

Blackmagic Design ATEM Mini Pro ISO Bundle

Blackmagic Design ATEM Mini Pro ISO Bundle Bundle offer comprising Blackmagic Design ATEM Mini Pro ISO Live Mixer with F...

$485

to the product

211

Blackmagic Design ATEM Mini Pro

Blackmagic Design ATEM Mini Pro Video Mixer * RTMP-capable for direct live streaming via Ethernet * Multiview via HDMI o...

$277

to the product

Blackmagic Design ATEM Mini Pro ISO

Blackmagic Design ATEM Mini Pro ISO Live Mixer with Four Scalable HDMI Inputs * With USB webcam output, audio mixer with...

$458

to the product

Blackmagic Design ATEM Mini Extreme ISO

Blackmagic Design ATEM Mini Extreme ISO Video Mixer * Has all the features of the ATEM Mini Pro * Additionally with 8 HD...

$1,169

to the product

Blackmagic Design ATEM SDI Extreme ISO

Blackmagic Design ATEM SDI Extreme ISO Video Mixer * Provides all the features of the ATEM SDI Pro ISO model, but with e...

$1,375

to the product

Blackmagic Design Atem Mini Extreme

Blackmagic Design Atem Mini Extreme Video Mixer * Has all the features of the ATEM Mini Pro, plus an additional 8 HDMI i...

$899

to the product

Blackmagic Design ATEM SDI Pro ISO

Blackmagic Design ATEM SDI Pro ISO Video Mixer * Provides, in addition to the basic functions of the ATEM SDI model, int...

$685

to the product

Blackmagic Design ATEM SDI

Blackmagic Design ATEM SDI Video Mixer * Four scalable SDI inputs * One USB webcam output * Two SDI outputs * One Fairli...

$307

to the product

$485

The shipping costs are calculated on the checkout page.

Sales Rank

in Video/AV Mixers

We’re rolling, and… action!

The ATEM Mini Pro ISO from Blackmagic Design is a compact video mixer that offers professional-quality multi-camera production in real time and delivers an impressive price-performance ratio. It has connections for up to four HDMI inputs (e.g. for digital cameras, computers, games consoles, and more) and two audio inputs in 3.5 mm jack format, making video production uncomplicated. Users can directly switch between the connected sources on the device, add picture-in-picture, transition, and chroma keying (better known as green screen and blue screen) effects, and even integrate their own graphics. The results can then be transferred to the user’s computer – which will recognise the ATEM Mini Pro as a webcam – via the USB-C interface or via LAN cable: The ideal setup for live streaming and for innovative business presentations via video chat. With the ISO version of the ATEM Mini Pro, the USB-C connection can also be used to isolate and record each camera track in outstanding quality, and these can then be edited later on. This bundle additionally includes a transport case from Flyht Pro.

Plug & play

The ATEM Mini Pro ISO edits video signals that are sent via HDMI in a very simple manner. Cuts and effect transitions can be made between the connected video sources using keys 1 to 4 on the user interface. The audio source can be set to match the selected HDMI source or permanently assigned – to the two additional 3.5 mm jack connections, for example. The USB-C connection can be used to transfer all of the video tracks from the camera simultaneously. Since a timecode is assigned and stored, these can then easily be synchronised and edited in a video programme. Those using Black Magic Design’s own DaVinci Resolve software can directly open the automatically generated project file, in which all of the relevant cuts are already pre-set and can be subsequently corrected. The Flyht Pro case included here can be adapted using the corresponding foam blocks and will protect the ATEM Mini ISO Pro during transport and storage.

Stream your way to success

From online tutorials, concerts, music lessons, and dance classes to conferences, religious services, webinars, and innovative business presentations, the world of live streaming is multifaceted. Anyone looking to make a name for themselves here will be hard pressed to pass on the ATEM Mini Pro ISO, which offers an impressive and affordable point of entry. Viewers on YouTube, Facebook, Twitch, ZOOM, Skype, and other streaming and messenger services will appreciate the high quality of your video presentations. What is more, the ATEM Mini Pro ISO is also extremely useful as an offline tool, since the HDMI video output can be connected to a projector. The USB-C connection can also be used to record all connected camera signals together in sync and with a timecode, which allows the videos to be easily edited at a later date. The included transport case makes this bundle particularly suitable for those who wish to occasionally use the ATEM Mini Pro ISO on the go.

About Blackmagic Design

Founded in 2001, the Australian company Blackmagic Design is one of the world's leading pioneers and manufacturers of creative video technology. Known for its outstanding codecs, Blackmagic offers professional technology at affordable prices. The manufacturer demonstrated this in 2002 with the release of the DeckLink capture card. This enabled the editing of uncompressed 10-bit video material on a Macintosh OS X system. The products of the ATEM Live series are used in major productions worldwide. Grant Petty, founder and CEO of the company, describes the guiding principle of his company itself as follows: "Blackmagic Design strives to make video of the highest quality affordable to everyone so that production and television can become a truly creative industry."

Mini Pro or Mini Pro ISO?

The ATEM Mini Pro and ATEM Mini Pro ISO may look almost identical, but there are decisive differences between them. The Mini Pro makes it easy for users to start streaming right away and record the entire stream via USB-C, but the ISO version is the better solution for those who wish to edit their videos later on, since it records not only the overall signal but each camera track individually. This eliminates the hassle of downloading data from each camera’s memory card and manually synchronising the tracks, as these can be imported directly to the user’s video programme thanks to their synchronisation with a time code. More complex editing options are also available: Cuts can be corrected, additional transitions inserted, complete sections copied out to create a “best-of”, and much, much more. Blackmagic Design’s own DaVinci Resolve editing software is particularly ideal here, for which a project file with the cuts made in real time is created and provides an immediate working basis.

In the spotlight

ATEM Software Control

ATEM Software Control is used to control the corresponding hardware remotely. It allows settings to be adjusted, image formats selected based on the camera settings, and video sources switched directly from the computer without needing to press any buttons on the device. The programme can also be used for keying, e.g. to superimpose multiple images in “picture-in-picture” mode or to insert subtitles. Transitions between images can be selected and applied either automatically or manually. Both the audio inputs of the cameras that are transferred via the HDMI signal and the audio signals from the mini-jack sockets can be regulated via the mixing desk tool that is integrated into the software. Last but not least, users can stream directly to a selection of different platforms.
